Waveshare ESP32-C6 1.43inch AMOLED Round Touch Display Development Board 160MHz RISC-V 466x466

Marka: Waveshare
Nazwa modelu: ESP32-C6
Szybkość CPU: 160 MHz
Technologia łączności: WiFi 6, Bluetooth 5, Zigbee 3.0, Thread, USB, UART, I2C, GPIO
System operacyjny: Linux
Producent procesora: Espressif
Zgodne urządzenia: Komputer, klawiatura, głośnik
Technologia pamięci RAM: DDR, LPDDR

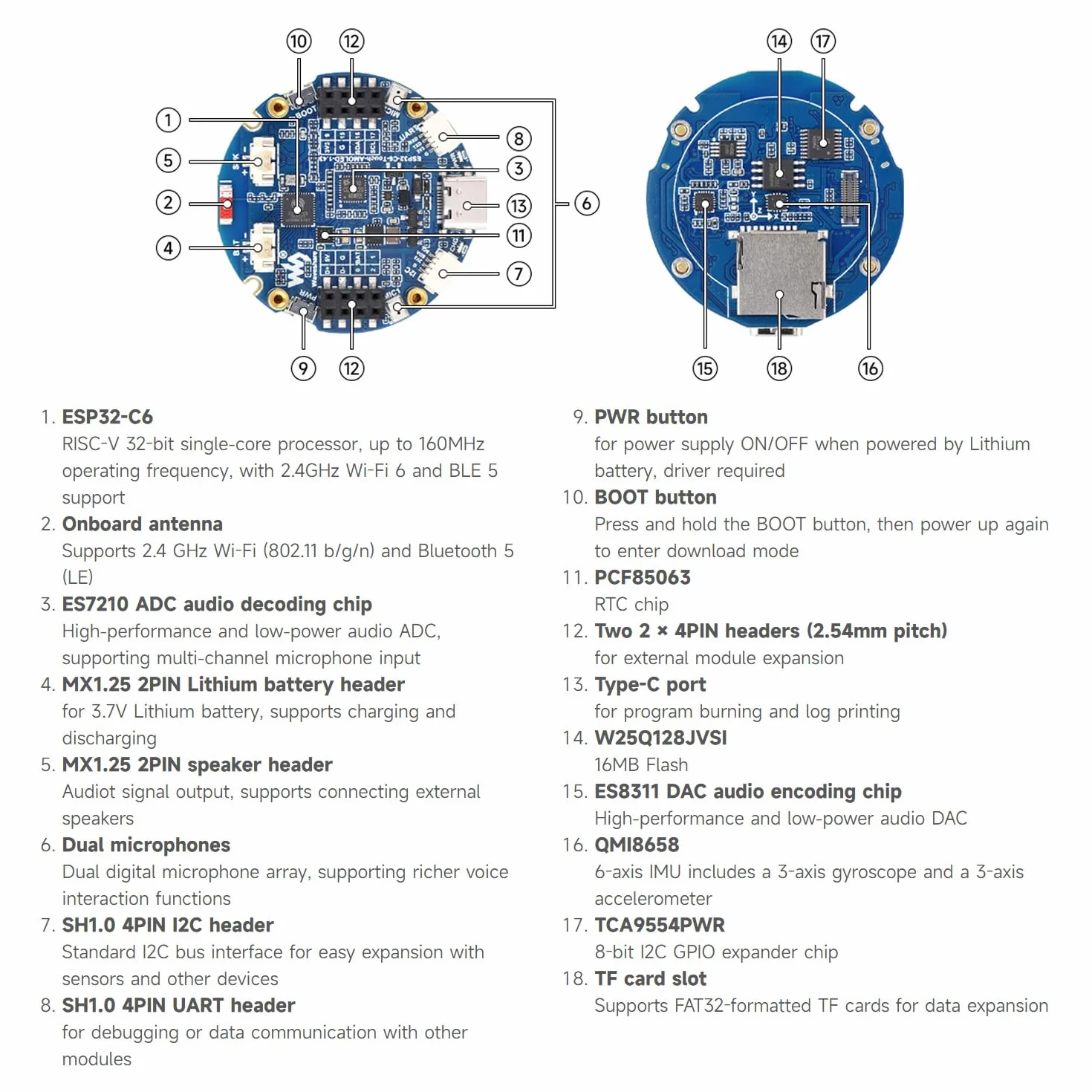

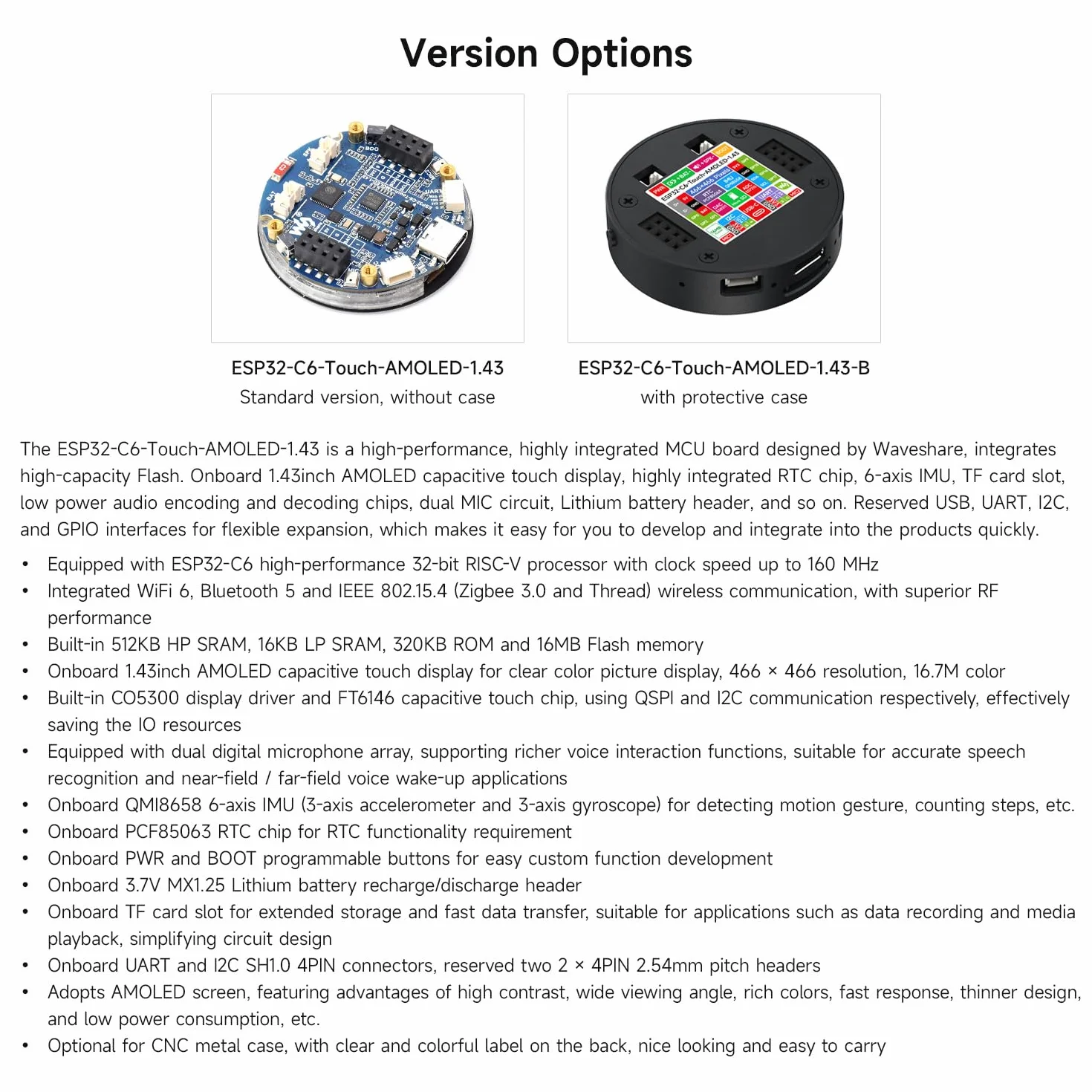

- The ESP32-C6-Touch-AMOLED-1.43-B(with protective case) is a high-performance, highly integrated MCU board, integrates high-capacity Flash. Onboard 1.43inch AMOLED capacitive touch display, highly integrated RTC chip, 6-axis IMU, TF card slot, low power audio encoding and decoding chips, dual MIC circuit, Li batt(Not included) header, and so on. Reserved USB, UART, I2C, and GPIO interfaces for flexible expansion, which makes it easy for you to develop and integrate into the products quickly
- Equipped with ESP32-C6 high-performance 32-bit RISC-V processor with clock speed up to 160 MHz. Integrated WiFi 6, BT 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance. Built-in 512KB HP S-RAM, 16KB LP S-RAM, 320KB ROM and 16MB Flash memory. With CNC metal case, with clear and colorful label on the back, nice looking and easy to carry

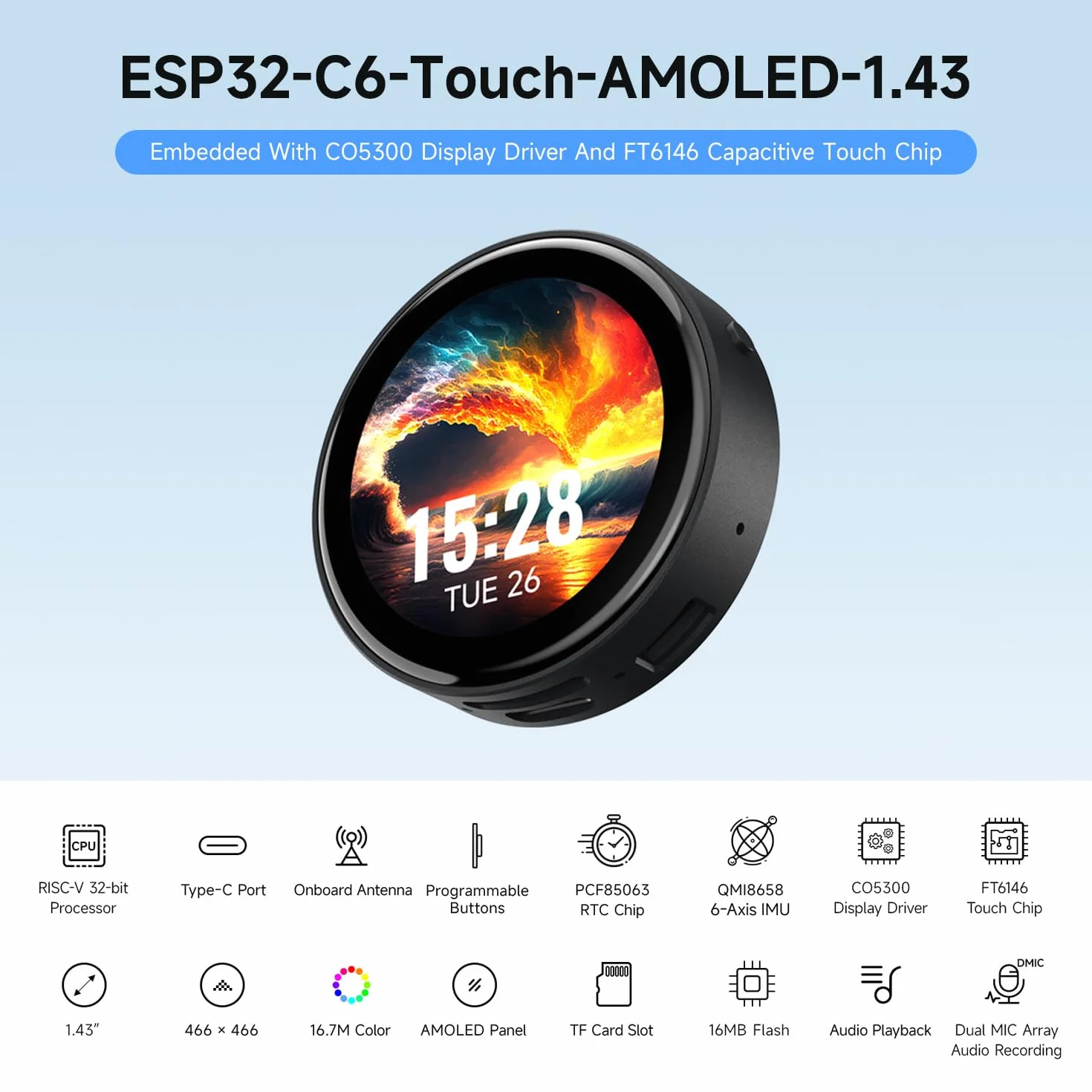

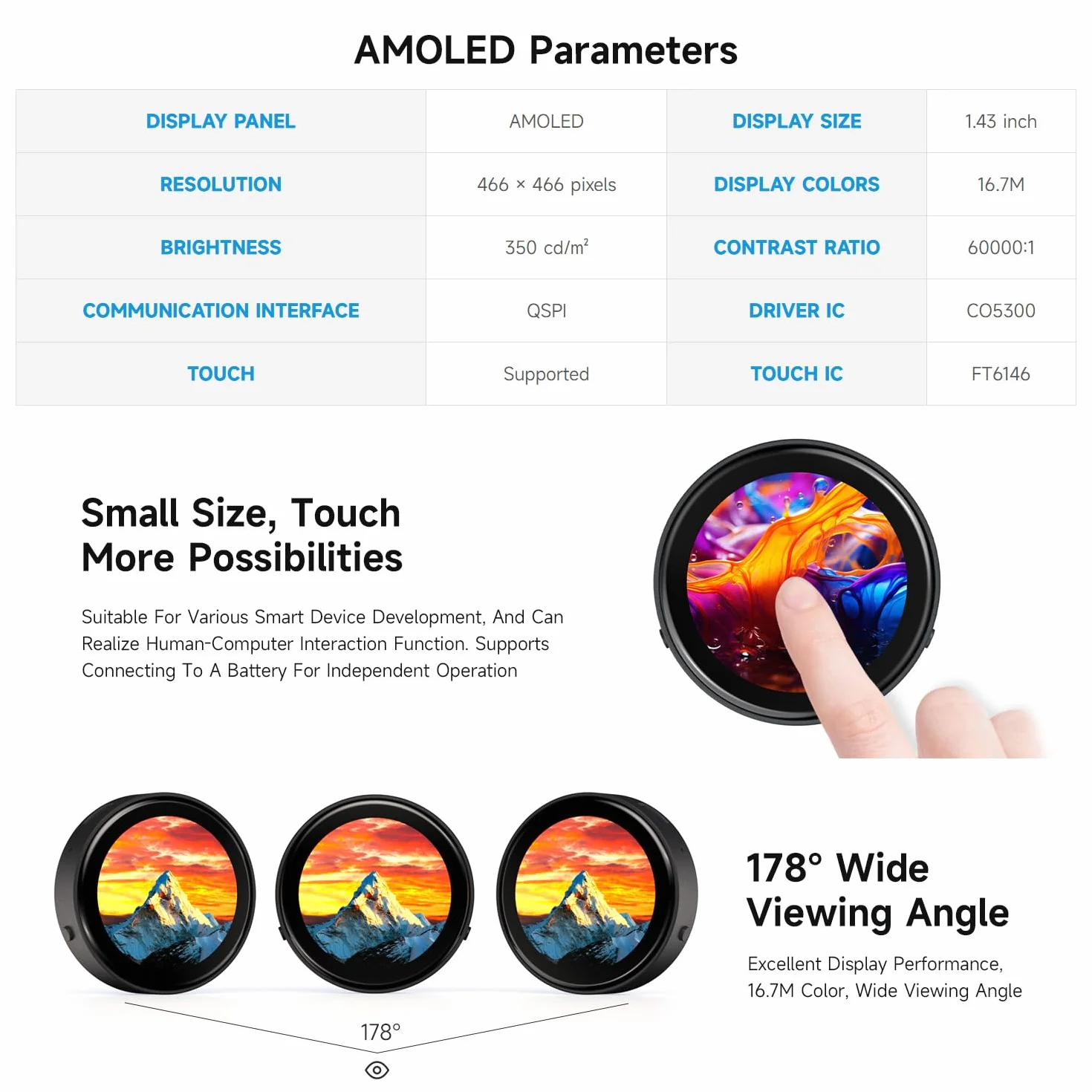

- Onboard 1.43inch AMOLED capacitive touch display for clear color picture display, 466x466 resolution, 16.7M color. Built-in CO5300 display driver and FT6146 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources. Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
- Equipped with dual digital microphone array, supporting richer voice interaction functions, suitable for accurate speech recognition and near-field / far-field voice wake-up applications. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.. Onboard UART and I2C SH1.0 4PIN connectors, reserved two 2x4PIN 2.54mm pitch headers
- Onboard PCF85063 RTC chip for RTC functionality requirement. Onboard PWR and BOOT programmable buttons for easy custom function development. Onboard 3.7V MX1.25 Li batt(Not included) recharge/discharge header. Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
